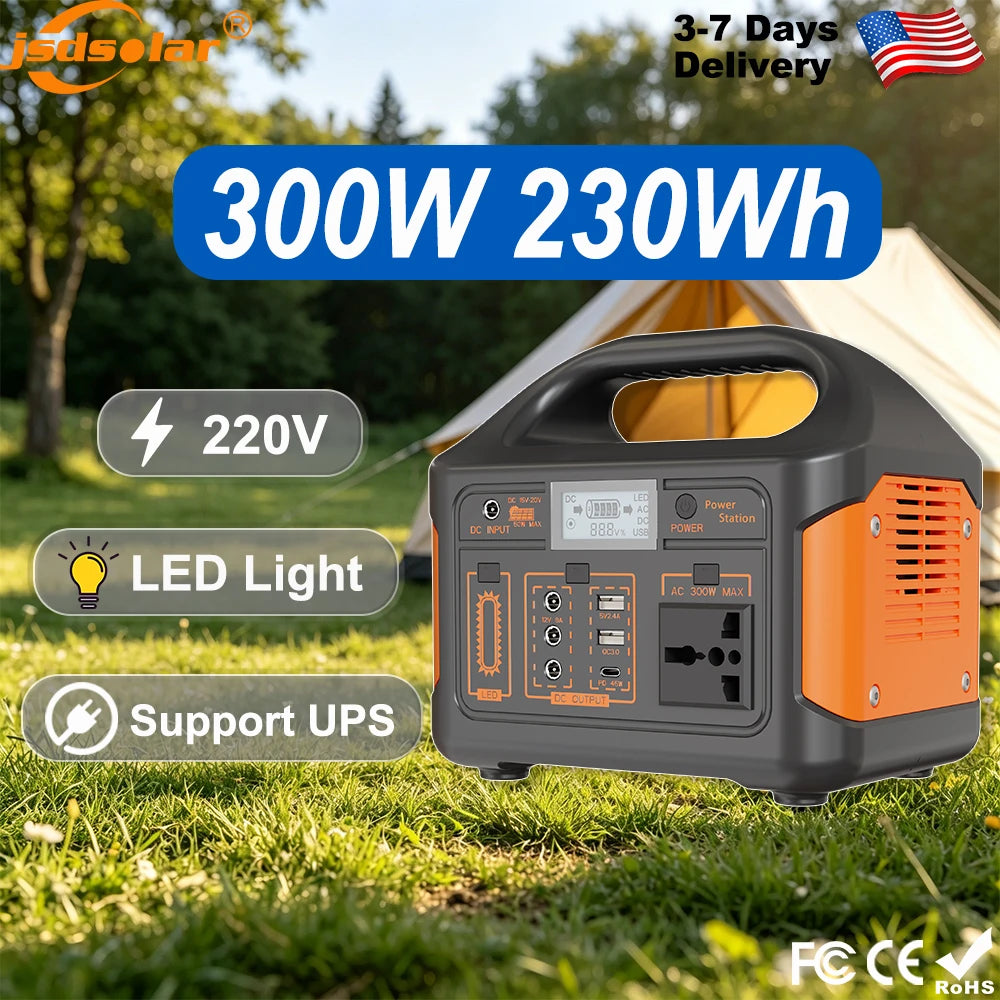

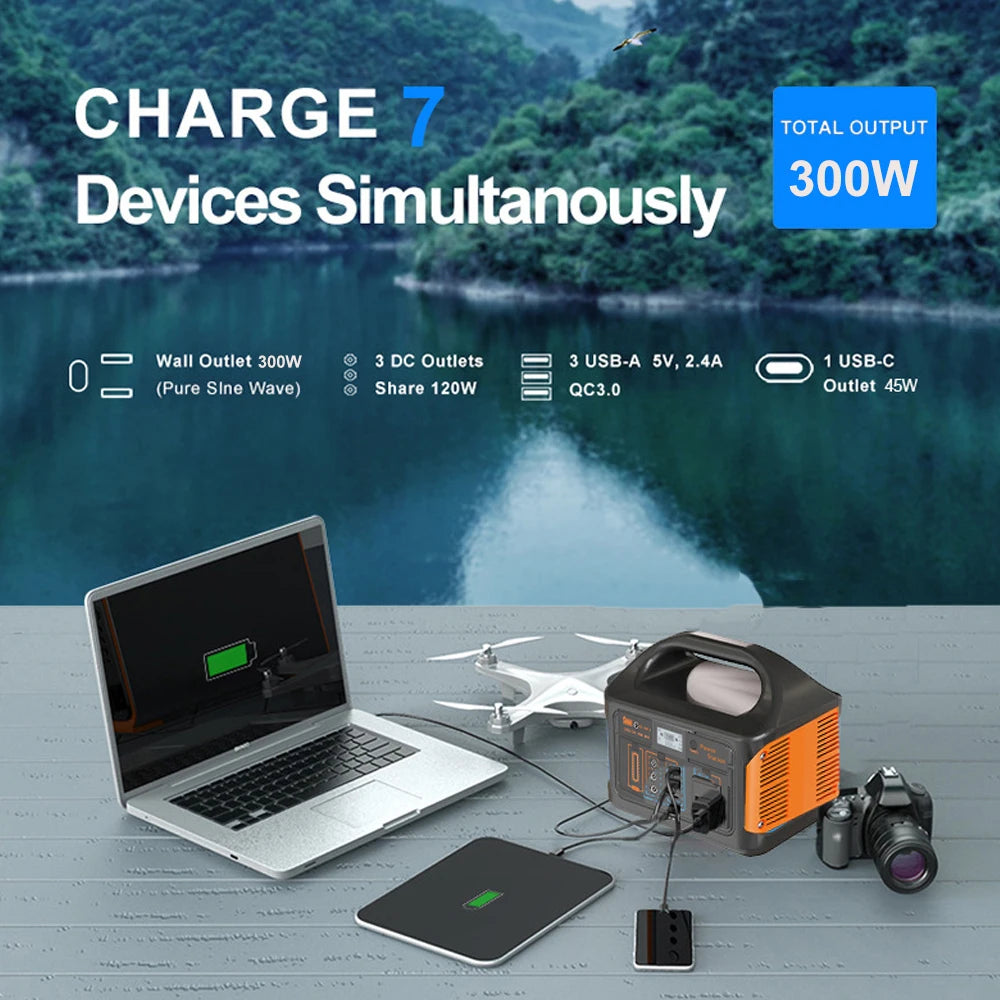

Power your outdoor adventures with GaiaRay 300W Portable Power Bank—your all-in-one LiFePO4 power station that keeps your devices charged and lights your campsite.

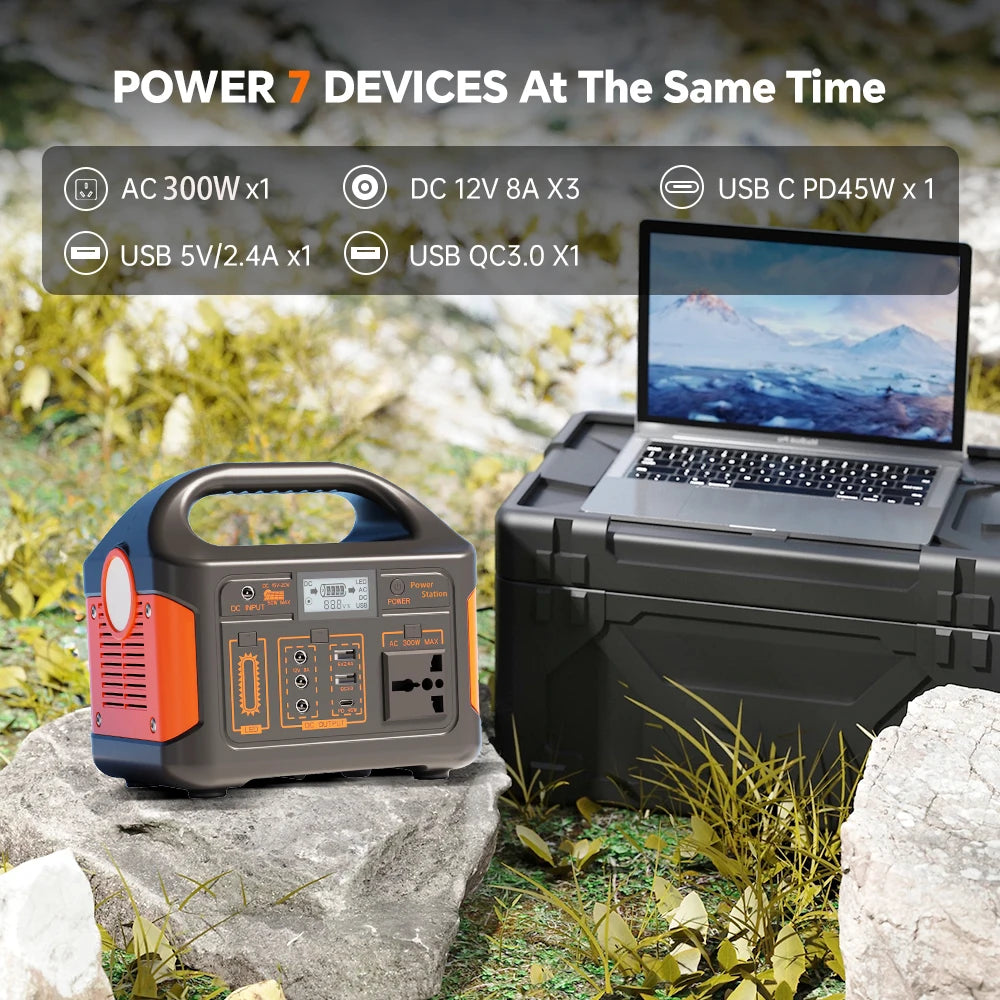

AC output versatility: 110V/220V at 50/60Hz with modified or pure sine wave, plus USB-A 5V/2.4A, USB-C PD 45W, QC 3.0, and three DC5521 ports.
Battery options and safety: LiFePO4 cells in 76.8Wh, 230Wh, or 460Wh configurations, with protection against low/high voltage, overload, over-temperature, and short circuits.
Solar charging and efficiency: 15–20V input up to 50W/90W (model dependent), built-in solar controller, charging currents up to 2–6A, and efficiency over 90%.
LED light and usability: LED with four states (bright, half-bright, flashing, off), plus quiet cooling and about 5 hours to reach 80% from a full discharge.
Rated Power
100W
300W
500W
Output Waveforr
Modified sine wave
Pure Sine Wave
AC Output Voltage
110V,220V
AC Output Frequency
50Hz/60Hz ± 0.5Hz
Conversion Efficiency
Maximum Value>90%

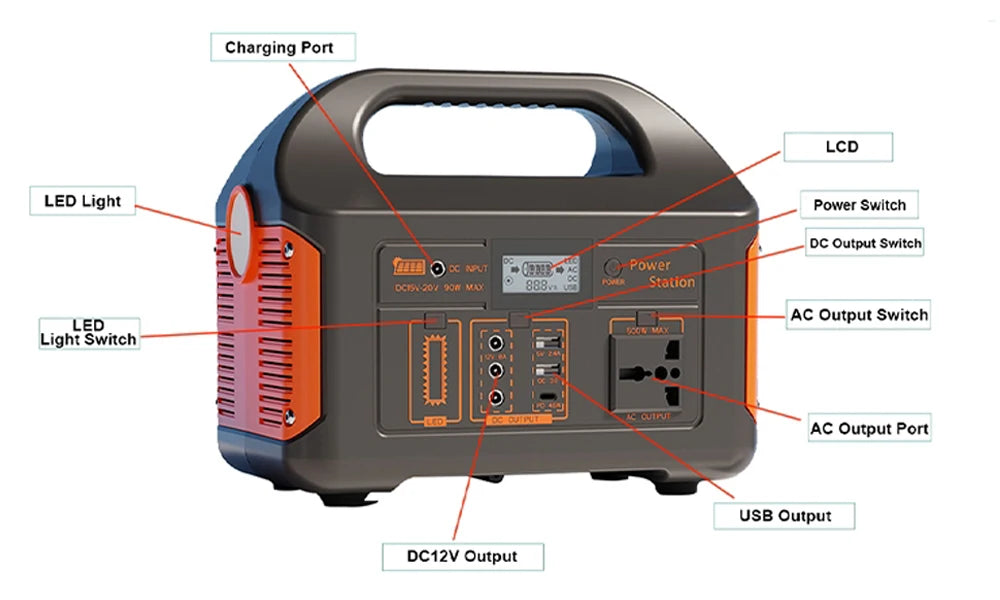

Charging interface
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller)
AC Output Socket
Universal Socket
DC Output Voltage
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port

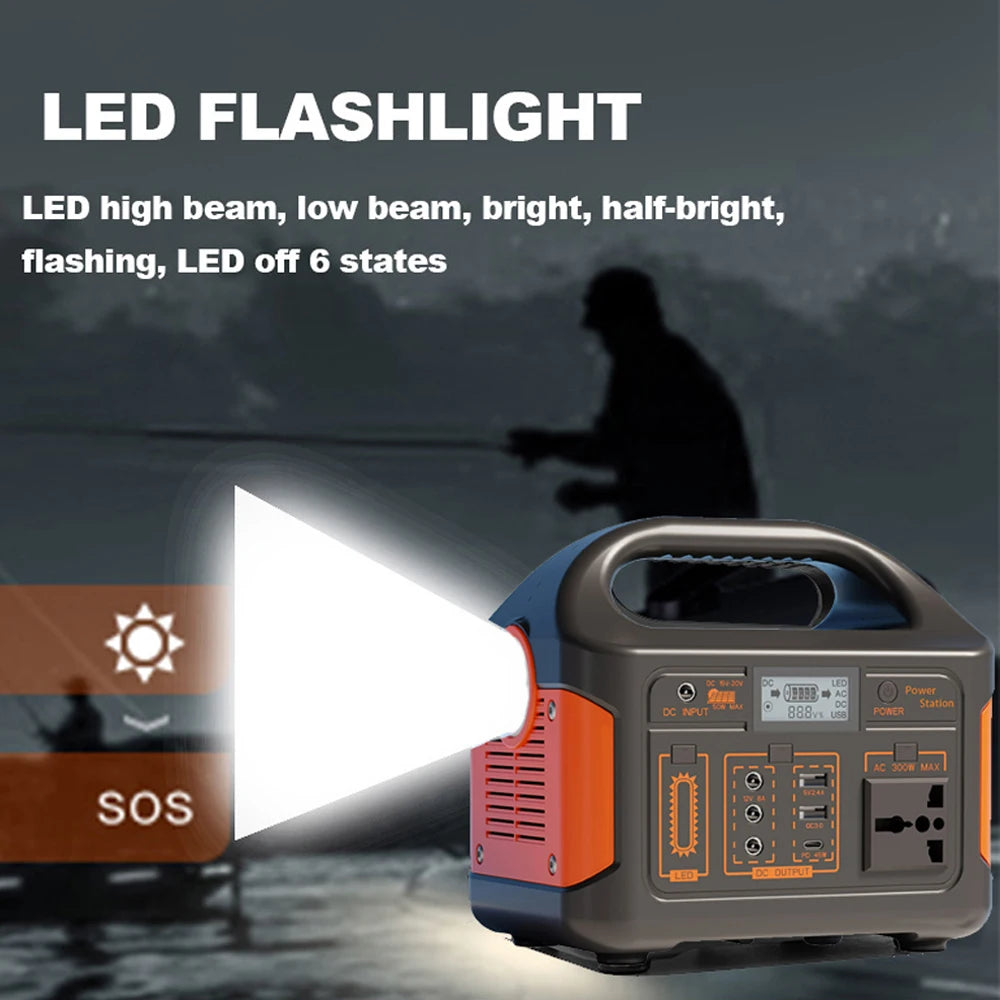

LED Light States
LED bright, half bright, flashing,LED off 4 states
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states
Battery Type
LiFePO4
Battery Capacity
76.8Wh
230Wh
460Wh
Solar panel charging
15V-20V Max 30W
15V-20V Max 50W
15V-20V Max 90W
Charging Current
Maximum Value 2A
Maximum Value 2.5A
Maximum Value 6A
AC Charqer Specifications
5v 2A
14.6V 2A
16V 5A

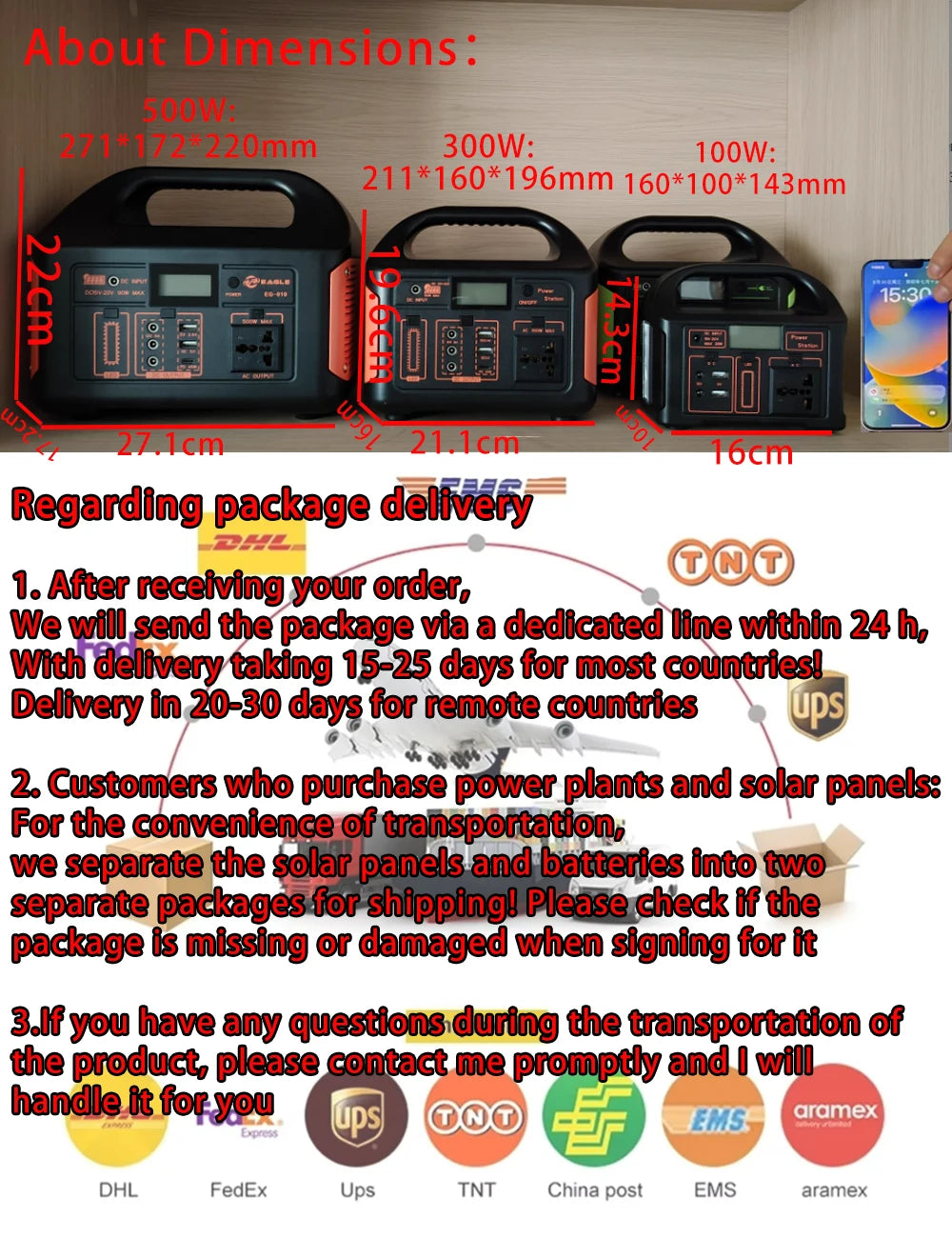

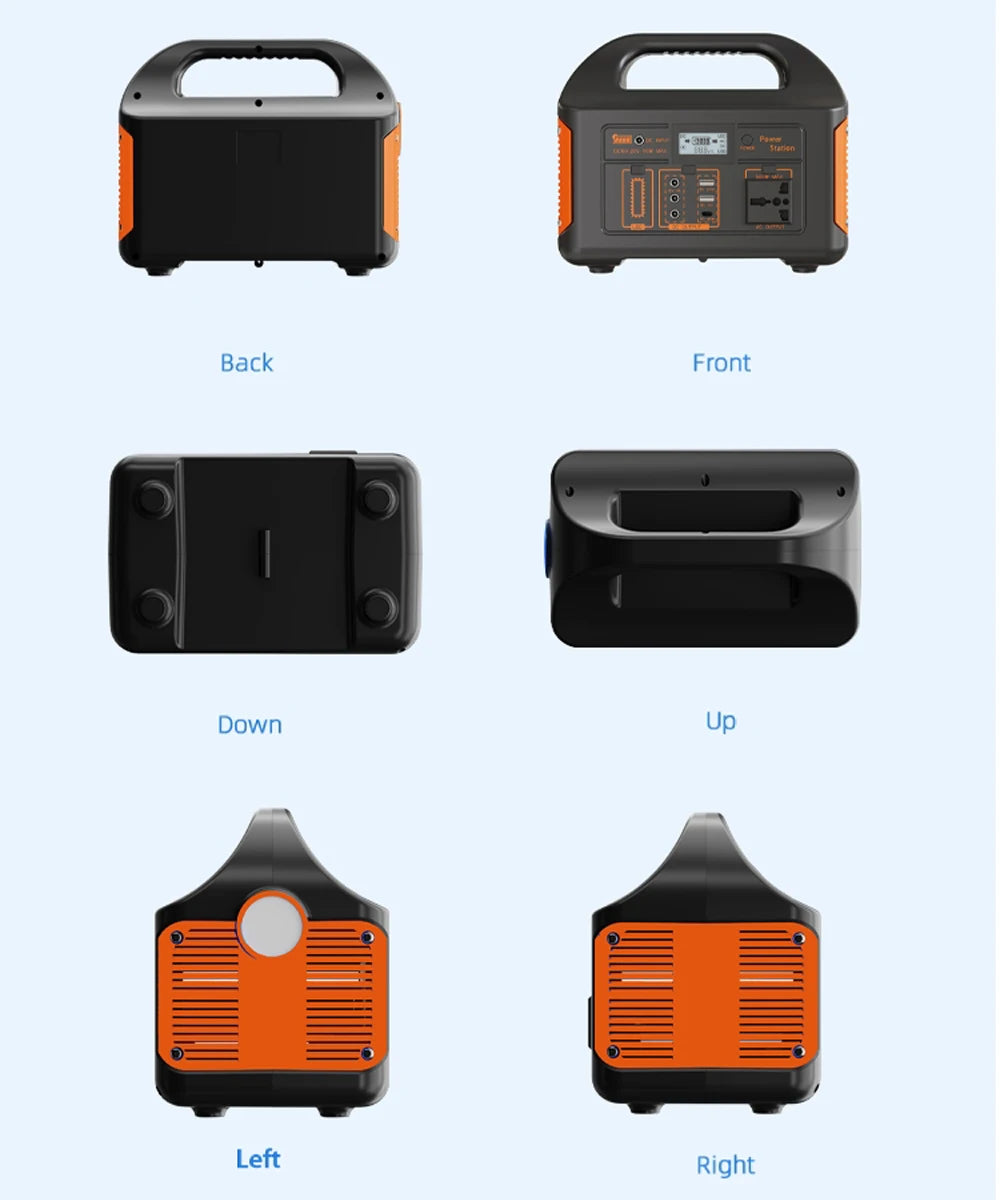

Product size (mm)
160*100*143mm
211*160*196mm
271*172*220mm
Outer packaging size (mm)
200*100*150mm
260*160*200mm
300*200*260mm
Charging Time
After full discharge,the battery capacity reaches 80% after 5 hours OT

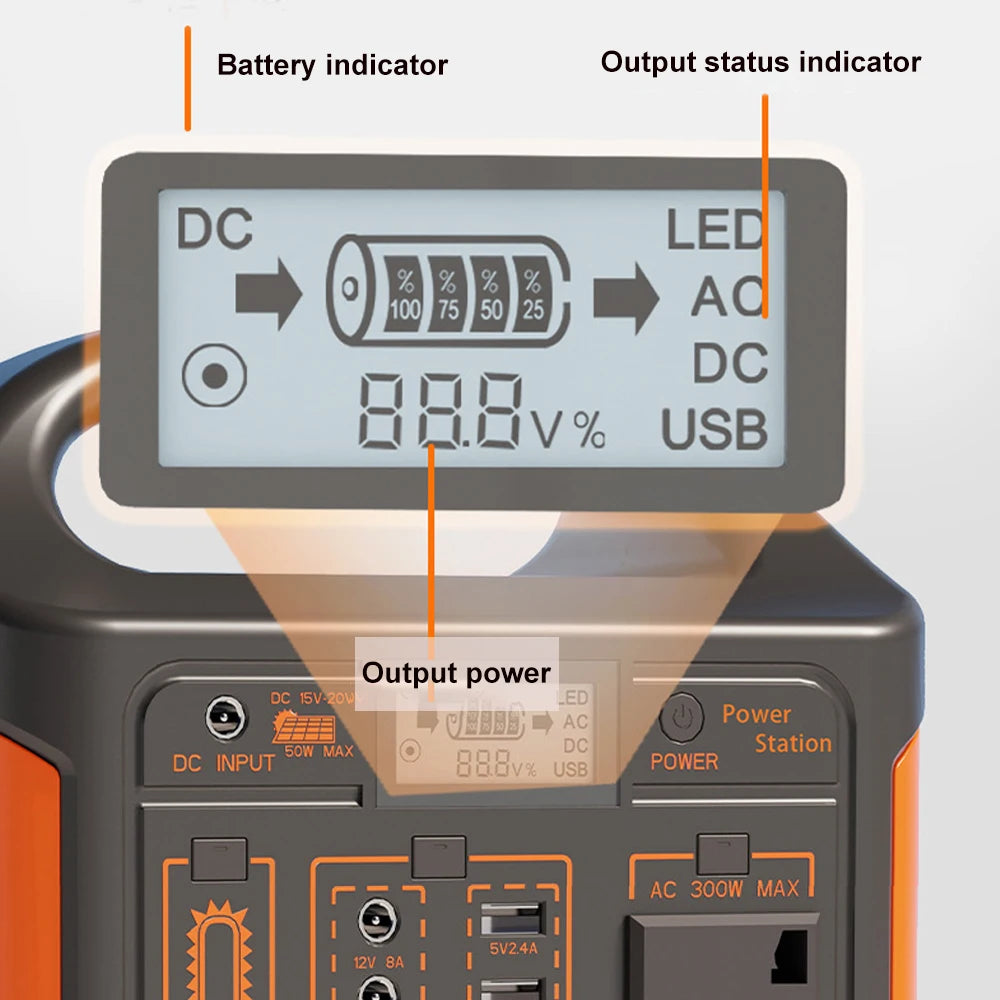

LCD
Battery Voltage, State of Charge, State of Charge, State of Discharge

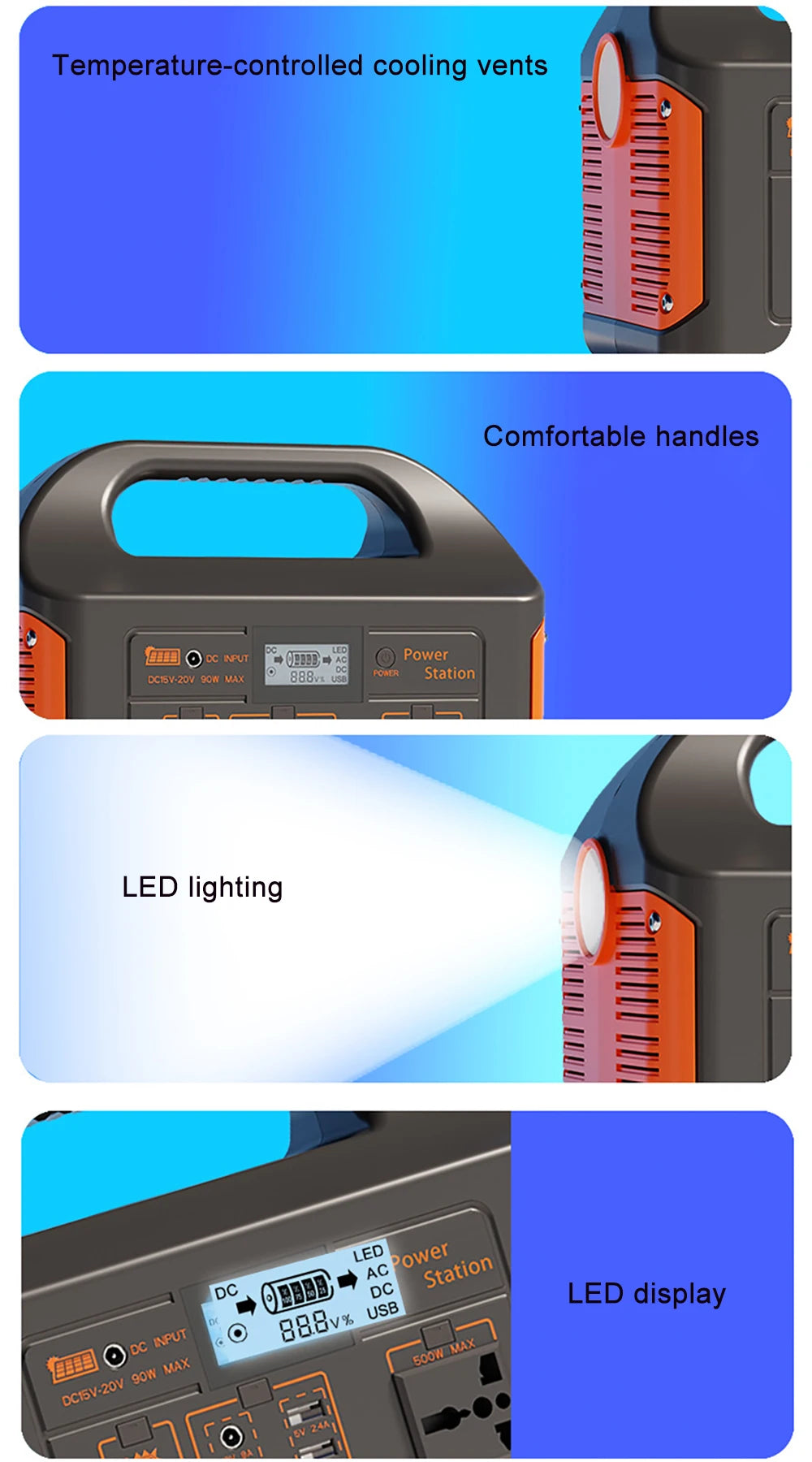

Heat Dissipation
Intelligent Temperature Control Cooling Fan
Noise
1Meter Distance <45dB

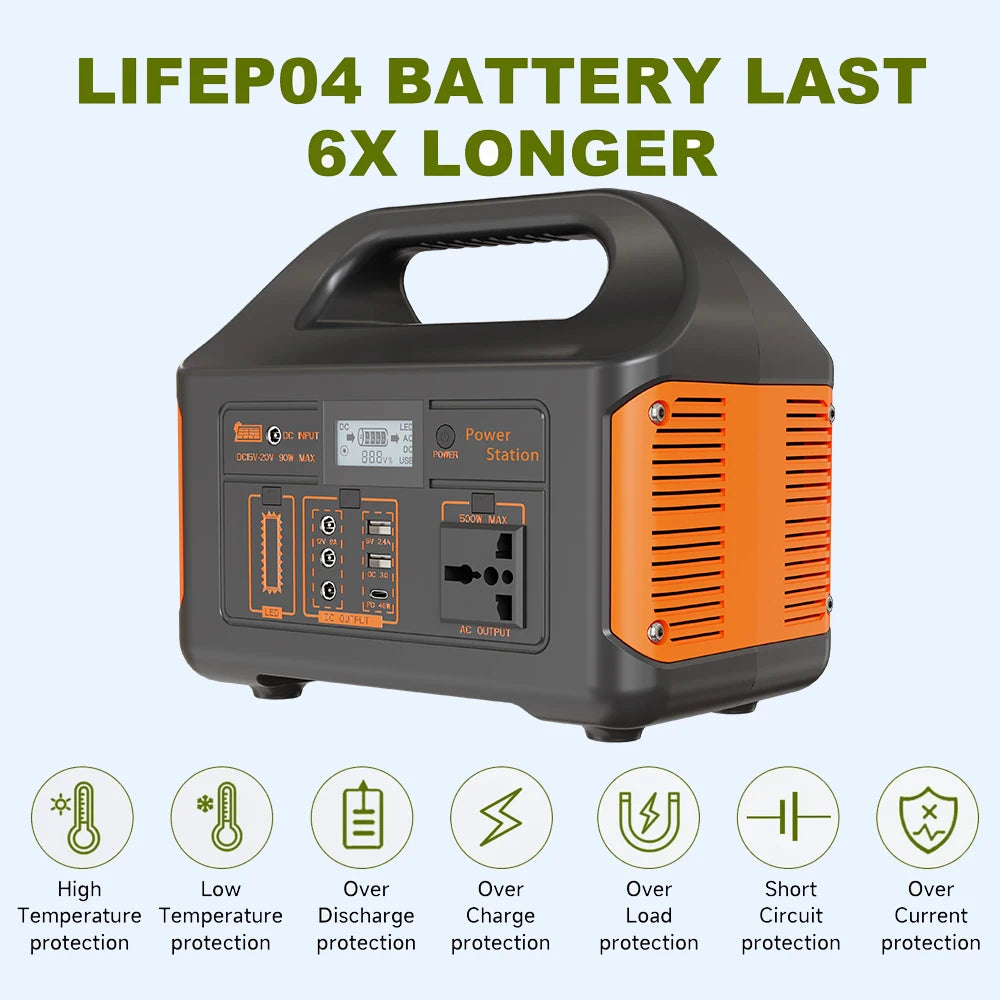

Protection Functions
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit
